Lionik lipo Mobile Phone Series Cell List

Model
Typical Capacit
(mAh)
Minimum Capacity (mAh)
Impedence
(m)
Nominal
Voltage
(V)
Dimension of Bare cell
(mm)

Weight (±0.5g)
Thickness
(±0.2)
Width
(±0.5)
Length
(±0.5)
PL-452543N
440
420
≤60
3.7
4.50
25.5
43.5
9.0
PL-052648
580
560
≤45
3.7
5.00
26.5
48.5
12.0
PL-522648
600
580
≤45
3.7
5.20
26.5
48.5
12.5
PL-052845
590
570
≤45
3.7
5.00
28.5
45.5
12.5
PL-383038N
400
380
≤100
3.7
3.80
30.5
38.5
8.5
PL-043040
430
420
≤60
3.7
4.00
30.5
40.5
8.0
PL-053040
560
550
≤60
3.7
5.00
30.5
40.5
11.0
PL-523040
600
580
≤60
3.7
5.20
30.5
40.5
12.0
PL-043043
520
500
≤60
3.7
4.00
30.5
43.5
11.0
PL-043043H
540
520
≤60
3.7
4.00
30.5
43.5
11.0
PL-383045
470
450
≤60
3.7
3.80
30.0
45.0
9.0
PL-033048
380
360
≤60
3.7
3.90
30.5
48.5
8.5
PL-393048
540
520
≤60
3.7
3.90
30.5
48.5
10.0
PL-043048
610
600
≤60
3.7
4.00
30.5
48.5
10.5
PL-043048L
620
610
≤60
3.7
4.00
30.5
48.5
11.0
PL-043048T
630
620
≤60
3.7
4.00
30.5
48.5
11.5
PL-423048
640
630
≤60
3.7
4.20
30.5
48.5
12.0
PL-433048H
650
640
≤60
3.7
4.30
30.5
48.5
12.5
PL-443048
660
650
≤60
3.7
4.40
30.0
48.0
13.0
PL-473048
700
680
≤45
3.7
4.70
30.5
48.5
13.5
PL-053048
720
700
≤45
3.7
5.00
30.5
48.5
14.0
PL-053048H
750
720
≤45
3.7
5.00
30.5
48.5
14.5
PL-523048
780
750
≤45
3.7
5.20
30.5
48.5
15.0
PL-563048
820
780
≤45
3.7
5.60
30.5
48.5
15.5
PL-583048
810
800
≤60
3.7
5.80
30.0
48.0
16.0
PL-063048
940
900
≤45
3.7
6.00
30.5
48.5
17.0
PL-623048
980
950
≤45
3.7
6.20
30.5
48.5
17.5
PL-073048
1050
1000
≤60
3.7
7.00
30.0
48.0
19.5
PL-423052
690
670
≤60
3.7
4.20
30.0
52.0
13.5
PL-393150
600
580
≤60
3.7
3.90
31.0
50.0
10.5
PL-423150
700
680
≤60
3.7
4.20
31.0
50.0
13.5
PL-053150
750
700
≤60
3.7
5.00
31.0
50.0
14.0
PL-523150
850
800
≤60
3.7
5.20
31.0
50.0
16.0
PL-633150
950
900
≤60
3.7
6.30
31.0
50.0
17.5
PL-703150
1150
1100
≤60
3.7
7.00
31.0
50.0
19.5
PL-753150
1250
1200
≤60
3.7
7.50
31.0
50.0
23.0
PL-053436
630
600
≤60
3.7
5.00
34.5
36.5
10.5
PL-063436
650
630
≤60
3.7
6.00
34.5
36.0
12.8
PL-473438
550
500
≤60
3.7
4.70
34.0
38.0
10.5
PL-043442
570
550
≤80
3.7
4.00
34.0
42.0
11.5
PL-443442
670
650
≤80
3.7
4.40
34.0
42.0
12.8
PL-553442
750
720
≤80
3.7
5.50
34.0
42.0
16.0
PL-613442
820
800
≤80
3.7
6.10
34.0
42.0
18.0
PL-043443
550
530
≤60
3.7
4.00
34.5
43.5
11.0
PL-433443
630
620
≤60
3.7
4.30
34.5
43.5
12.0
PL-033448
440
400
≤60
3.7
3.00
34.5
48.5
10.0
PL-383448
630
600
≤60
3.7
3.80
34.5
48.5
12.5
PL-043448
650
640
≤60
3.7
4.00
34.5
48.5
12.5
PL-443448
740
700
≤60
3.7
4.40
34.5
48.5
13.0
PL-063448
1000
950
≤45
3.7
6.00
34.5
48.5
19.0
PL-783448
1350
1300
≤60
3.7
7.80
34.5
48.5
24.5
PL-323450
550
520
≤60
3.7
3.20
34.5
50.5
10.0
PL-323450T
580
560
≤45
3.7
3.30
35.5
51.0
10.5
PL-343450
580
550
≤60
3.7
3.40
34.5
50.5
11.0
PL-363450
610
580
≤60
3.7
3.65
34.5
50.5
11.5
PL-363450H1
630
600
≤45
3.7
3.60
34.5
50.5
12.0
PL-373450
620
590
≤60
3.7
3.70
34.5
50.5
12.0
PL-383450
660
650
≤45
3.7
3.80
34.5
50.5
12.5
PL-383450H1
700
680
≤45
3.7
3.95
34.5
50.5
13.0
PL-043450
700
680
≤45
3.7
4.00
34.5
50.5
13.0
PL-433450
780
750
≤45
3.7
4.30
34.5
50.5
14.0
PL-473450
830
800
≤45
3.7
4.70
34.5
50.5
15.0
PL-053450
850
830
≤45
3.7
5.00
34.5
50.5
17.0
PL-053450M
770
750
≤45
3.7
5.00
34.5
50.5
15.0
PL-523450L
950
920
≤45
3.7
5.20
34.5
50.5
18.5
PL-063450
1050
1000
≤45
3.7
6.00
34.5
50.5
19.5
PL-653450
1100
1080
≤45
3.7
6.50
34.5
50.5
20.5
PL-753450
1350
1300
≤45
3.7
7.50
34.5
50.5
24.0
PL-043452
740
720
≤45
3.7
4.00
34.5
52.5
14.0
PL-293455
520
500
≤60
3.7
2.90
34.5
55.5
11.0
PL-323455
580
550
≤60
3.7
3.20
34.5
55.5
12.0
PL-343455
610
580
≤60
3.7
3.40
34.5
55.5
12.5
PL-383455M
690
670
≤45
3.7
3.80
34.5
55.5
13.5
PL-383455L
720
700
≤45
3.7
3.80
34.5
55.5
14.0
PL-383455
750
720
≤45
3.7
3.95
34.5
55.5
15.0
PL-393455
750
700
≤45
3.7
3.90
34.5
55.0
15.0
PL-423455
790
780
≤45
3.7
4.20
34.5
55.5
15.5
PL-433455
800
790
≤45
3.7
4.30
34.5
55.5
16.0
PL-053455
900
860
≤45
3.7
5.00
34.5
55.5
18.5
PL-053455H
920
880
≤45
3.7
5.00
34.5
55.5
19.0
PL-523455
1100
1050
≤45
3.7
5.20
34.5
55.0
19.5
PL-563455
1050
1000
≤35
3.7
5.60
34.5
55.5
20.0
PL-623455
1300
1250
≤45
3.7
6.20
34.5
55.0
24.5
PL-383458
760
750
≤45
3.7
3.80
34.5
58.0
15.0
PL-483458
1050
1000
≤45
3.7
4.80
34.5
58.0
19.5
PL-523458
1100
1050
≤45
3.7
5.20
34.5
58.0
21.5
PL-293459
550
520
≤60
3.7
2.90
34.5
59.5
11.0
PL-063460
1250
1200
≤45
3.7
6.00
34.5
60.0
24.5
PL-383461
810
780
≤45
3.7
3.80
34.5
61.5
15.0
PL-483461
1050
1000
≤35
3.7
4.80
34.5
61.5
19.5
PL-063480
1600
1550
≤45
3.7
6.00
34.5
80.0
28.5
PL-033562
620
600
≤45
3.7
3.00
35.5
62.5
12.5
PL-323562
700
680
≤45
3.7
3.20
35.5
62.5
14.0
PL-363562
780
760
≤45
3.7
3.60
35.5
62.5
15.0
PL-383562L
830
800
≤45
3.7
3.80
35.5
62.5
16.0
PL-383562
880
850
≤45
3.7
3.80
35.5
62.5
17.0
PL-043562
880
850
≤45
3.7
4.00
35.5
62.5
18.0
PL-423562
1000
950
≤60
3.7
4.20
35.0
62.0
19.0
PL-053562
1100
1050
≤35
3.7
5.00
35.5
62.5
22.0
PL-553562
1200
1150
≤35
3.7
5.50
35.5
62.5
25.0
PL-053566
1250
1200
≤60
3.7
5.00
35.0
66.0
24.5
PL-553566
1350
1300
≤60
3.7
5.50
35.0
66.0
25.5
PL-583566
1450
1400
≤60
3.7
5.80
35.0
66.0
26.5
PL-853566
2000
1900
≤60
3.7
8.50
35.0
66.0
36.5
PL-463840
700
650
≤60
3.7
4.60
38.0
40.0
13.0
PL-383875
1050
1000
≤60
3.7
3.80
38.0
75.0
22.5
PL-343944
550
530
≤60
3.7
3.40
39.0
44.0
11.0
PL-383944
650
620
≤60
3.7
3.80
39.0
44.0
12.0
PL-254060
550
530
≤60
3.7
2.50
40.5
60.5
12.5
PL-364060
880
850
≤45
3.7
3.60
40.5
60.5
16.0
PL-384060
980
950
≤45
3.7
3.95
40.5
60.5
19.0
PL-564062
1550
1500
≤30
3.7
5.60
40.5
62.5
28.5
PL-034169
850
800
≤45
3.7
3.00
41.0
69.0
16.0
PL-384169
1150
1100
≤45
3.7
3.80
41.0
69.0
23.0
PL-454169
1500
1450
≤45
3.7
4.50
41.0
69.0
27.5
PL-554169
1600
1500
≤45
3.7
5.50
41.0
69.0
30.0
PL-634169
2100
2000
≤45
3.7
6.30
41.0
69.0
37.0
PL-034350
650
600
≤45
3.7
3.00
43.0
50.0
13.0
PL-554345
1050
1000
≤45
3.7
5.50
43.5
45.5
20.0
PL-624535
880
850
≤45
3.7
6.20
45.5
35.5
16.0
  • Testing conditions: Discharge current 0.2C; End of voltage 2.75V; Temperature 25
  • Lionik cells have obtained ISO9001 2000, ISO 14001, CE, UL, certification
  • The above polymer lithium ion cells can be applied in various blue booth earphones such as Ericsson, Nokia, Motorola and elite.
  • The shapes and dimensions can be customized to various requirements.


General Specifications
Nominal Capacity (1) 850mAh
Nominal Voltage (2) 3.70V
Resistance 45m
Charging Voltage (Max.) 4.20.05V
Discharging Current (Max.) 1700mA

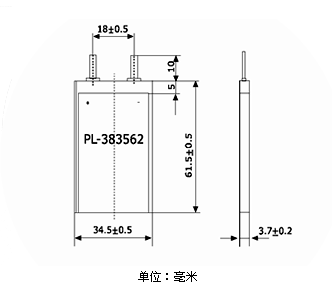

Dimensions (T,W,H) (3) 3.70.2×34.50.5×61.50.5 mm
Cycle Life >400 cycle
Self-discharge <8%
Operating
Temperature
Range		 Charge 0°C～45°C
Discharge -20°C～60°C
Storage -20°C～45°C
Energy Density Volume 385Wh/L
Weight 180Wh/kg
Weight(Approx.) (3) 17.50.5g
  • Testing conditions: Discharge current 0.2C; End of voltage 2.75V; Temperature 25
  • Lionik cells have obtained ISO9001 2000, ISO 14001, CE, UL, certification
  • The above polymer lithium ion cells can be applied in various 3G/CDMA/GPRS/GPS mobile phones such as Ericsson, Nokia, Motorola, Lionik, KONKA, CECT, AUX, ZTE, GIONEE etc.
  • The shapes and dimensions can be customized to various requirements.

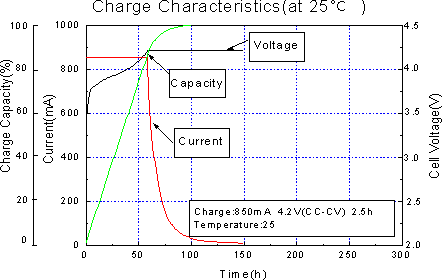

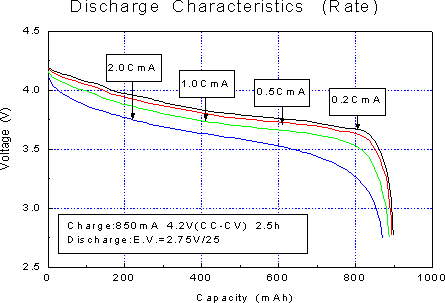

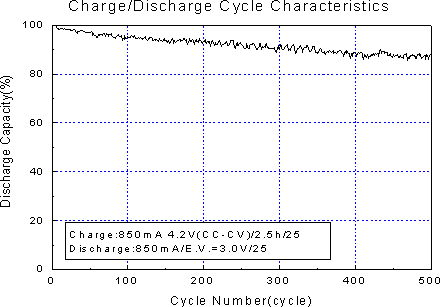

General Characteristics Charts
