Lionik Lipo PDA Series Cell List:
Model
Typical Capacit
(mAh)
Minimum Capacity (mAh)
Impedence
(m)
Nominal
Voltage
(V)
Dimension of Bare cell
(mm)
Weight (±0.5g)
Thickness
(±0.2)
Width
(±0.5)
Length
(±0.5)
PL-423467
990
950
≤45
3.7
4.20
34.5
67.5
20.5
PL-053467
1150
1100
≤35
3.7
5.00
34.5
67.5
21.0
PL-423480
1100
1000
≤35
3.7
4.20
34.5
80.5
20.0
PL-053480
1400
1350
≤35
3.7
5.00
34.5
80.5
26.0
PL-553480
1550
1500
≤30
3.7
5.50
34.5
80.5
31.0
PL-703480
2050
2000
≤30
3.7
7.00
34.5
80.5
39.0
PL-753480
2250
2200
≤30
3.7
7.50
34.5
80.5
43.0
PL-753650
1300
1250
≤45
3.7
7.50
36.0
50.0
22.5
PL-853650
1450
1400
≤35
3.7
8.50
36.0
50.0
27.0
PL-883650T
1650
1620
≤35
3.7
8.80
36.0
50.0
30.0
PL-883650
1700
1650
≤35
3.7
8.80
36.0
50.5
31.0
PL-753658
1650
1600
≤35
3.7
8.50
36.0
50.0
17.5
PL-373759
860
820
≤45
3.7
3.70
37.5
59.5
17.0
PL-043759
880
850
≤45
3.7
4.00
37.5
59.5
18.5

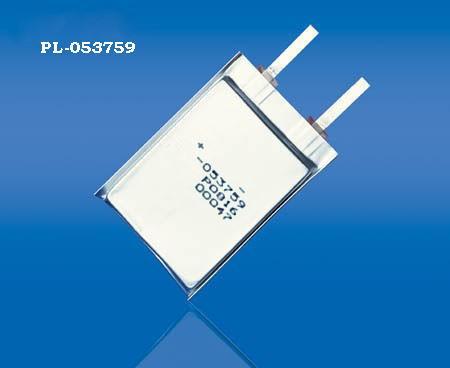

PL-053759
1150
1100
≤35
3.7
5.00
37.5
59.5
22.5
PL-563759
1300
1300
≤45
3.7
5.60
37.5
59.5
23.5
PL-583759
1400
1350
≤45
3.7
5.80
37.5
59.5
25.5
PL-063759
1450
1400
≤35
3.7
6.00
37.5
59.5
27.5
PL-084365
2450
2400
≤30
3.7
8.00
43.0
65.0
45.0
PL-654765
2180
2100
≤30
3.7
6.50
47.5
65.5
43.0
PL-034977
1250
1200
≤30
3.7
3.00
49.0
77.0
24.5
PL-374977
1350
1300
≤30
3.7
3.70
49.0
77.0
27.0
PL-044977
1400
1430
≤30
3.7
4.00
49.0
77.0
30.0
PL-454977
1750
1700
≤30
3.7
4.50
49.0
77.0
33.0
PL-054977
2050
2000
≤30
3.7
5.00
49.0
77.0
34.0
PL-385068
1400
1300
≤35
3.7
3.90
50.5
68.5
27.0
PL-055068
1850
1800
≤30
3.7
5.00
50.5
68.5
34.5
PL-255085
1050
1000
≤35
3.7
2.50
50.5
85.5
20.0
PL-035085N
1250
1200
≤35
3.7
3.00
50.5
80.5
24.0
PL-325085
1450
1400
≤35
3.7
3.20
50.5
85.5
28.0
PL-345085
1550
1500
≤35
3.7
3.40
50.5
85.5
30.0
PL-385085
1750
1700
≤35
3.7
3.80
50.5
85.5
33.0
PL-045085
1750
1700
≤30
3.7
4.00
50.5
85.5
34.0
PL-425085
1950
1900
≤35
3.7
4.20
50.5
85.5
36.5
PL-455085
2050
2000
≤35
3.7
4.50
50.5
85.5
42.0
PL-055085
2300
2250
≤30
3.7
5.00
50.5
85.5
43.5
PL-605085
2600
2500
≤35
3.7
6.00
50.5
85.5
48.0
PL-655085
3050
3000
≤30
3.7
6.50
50.5
85.5
56.0
PL-855085
4200
4100
≤30
3.7
8.50
50.5
85.5
74.0
PL-045152
1080
1050
≤35
3.7
4.00
51.5
52.5
20.0
PL-055152
1300
1250
≤35
3.7
5.00
51.5
52.5
24.0
PL-065152
1650
1600
≤30
3.7
6.00
51.5
52.5
33.0
PL-655152
1750
1700
≤30
3.7
6.50
51.5
52.5
34.0
PL-385165
1350
1300
≤30
3.7
3.80
51.5
65.0
26.5
PL-055165
1800
1750
≤30
3.7
5.00
51.5
65.0
35.0
PL-555165
2050
2000
≤30
3.7
5.50
51.5
65.0
38.5
PL-325280
1350
1300
≤35
3.7
3.20
52.5
80.5
27.0
PL-355280
1550
1500
≤30
3.7
3.50
52.5
80.5
31.0
PL-405280
1950
1900
≤30
3.7
4.00
52.5
80.5
36.0
PL-425280
2050
2000
≤30
3.7
4.20
52.5
80.5
37.0
PL-455280
2200
2150
≤30
3.7
4.50
52.0
80.0
40.0
PL-055280
2250
2200
≤30
3.7
5.00
52.5
80.5
44.0
PL-455460
1550
1500
≤35
3.7
4.50
54.0
60.0
29.0
PL-565460
1850
1800
≤35
3.7
5.60
54.0
60.0
34.0
PL-585460
2050
2000
≤30
3.7
5.80
54.0
60.0
37.0
PL-255585
1150
1100
≤35
3.7
2.50
55.5
85.5
23.0
PL-035585
1400
1350
≤35
3.7
3.00
55.5
85.5
27.0
PL-355585
1700
1600
≤30
3.7
3.50
55.5
85.5
33.0
PL-425585
2100
2000
≤30
3.7
4.20
55.5
85.5
40.0
PL-465585
2280
2200
≤35
3.7
4.60
55.5
85.5
45.0
PL-555585
2700
2600
≤30
3.7
5.50
55.5
85.5
47.0
PL-046066
1650
1600
≤30
3.7
4.00
60.5
66.5
33.0
PL-056066
2150
2100
≤30
3.7
5.00
60.5
66.5
41.0
PL-066066
2450
2400
≤30
3.7
6.00
60.5
66.5
46.0
PL-456580
2800
2700
≤30
3.7
4.50
65.5
80.5
52.0


General Specifications
Nominal Capacity (1) 1100mAh
Nominal Voltage (2) 3.70V
Resistance 30m
Charging Voltage (Max.) 4.20.05V
Discharging Current (Max.) 2200mAh

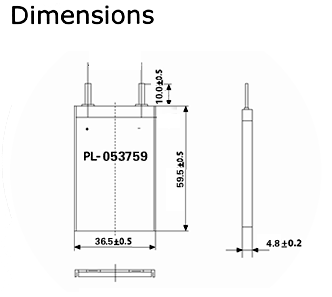

Dimensions (T,W,H) (3) 4.80.2×36.50.5×59.50.5 mm
Cycle Life >400 cycle
Self-discharge <8%
Operating
Temperature
Range		 Charge 0°C～45°C
Discharge -20°C～60°C
Storage -20°C～40°C
Energy Density Volume 375 Wh/L
Weight 180 Wh/kg
Weight(Approx.) (3) 21.00.5g
  1. Nominal Capacity: Discharge Current0.2C, End of Voltage 2.75V, Temperature 25°C.
  2. Nominal Voltage(Average Discharge Voltage): Discharge Current 0.2C, End of Voltage 2.75V, Temperature 25°C.
  3. These Values show the dimensions and weight of the bare battery.
